AUTEM的PLC-ANALYZER pro 6是一个软件系统，用于对PLC控制设备记录测量值和进行逻辑分析。这款软件可以非常容易地采集、显示和评估PLC信号，例如输入，输出，标志，定时器，计数器，数据块的数据等。此外，视频数据还可以与PLC过程数据同步记录（使用视频跟踪模块）。

　　PLC-ANALYZER pro 6具有通过标准化PLC接口记录过程数据的决定性优势。例如，对于 SIMATIC S7，可以使用 MPI/PPI、PROFIBUS 或 TCP/IP PROFINET 采集信号，还支持所有CoDeSys通信路径和各种制造商的许多其他PLC连接。

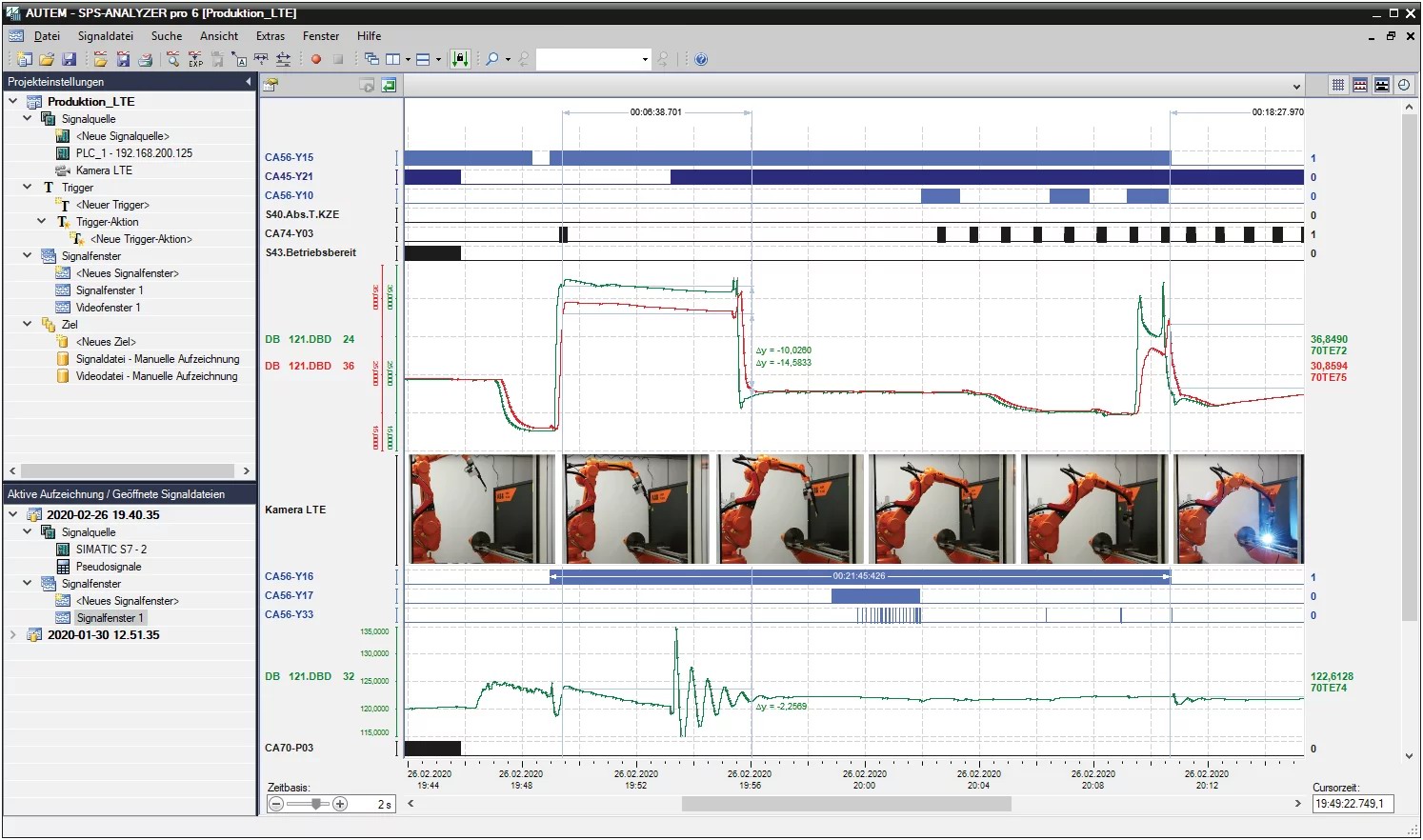

　　PLC-ANALYZER pro 6 的视频跟踪模块可实现与 PLC 信号采集同步的视频录制，这对于分析机器和系统的错误有很大帮助，因为可以用视频图像与过程数据同步查看机械情况。PLC信号和视频图像可以在相邻的两个窗口中显示，视频窗口准确显示与信号窗口中信号光标位置时间相对应的图像。如果移动信号光标，视频图像也会相应更改。

　　PLC-ANALYZER pro 6的实时显示可以实时观察信号波形，在记录时已经可以进行分析和评估。除了长期记录外，还可以指定用于采集特定事件的触发条件，这样可以专门记录很少发生的零星偶发错误以供以后分析。

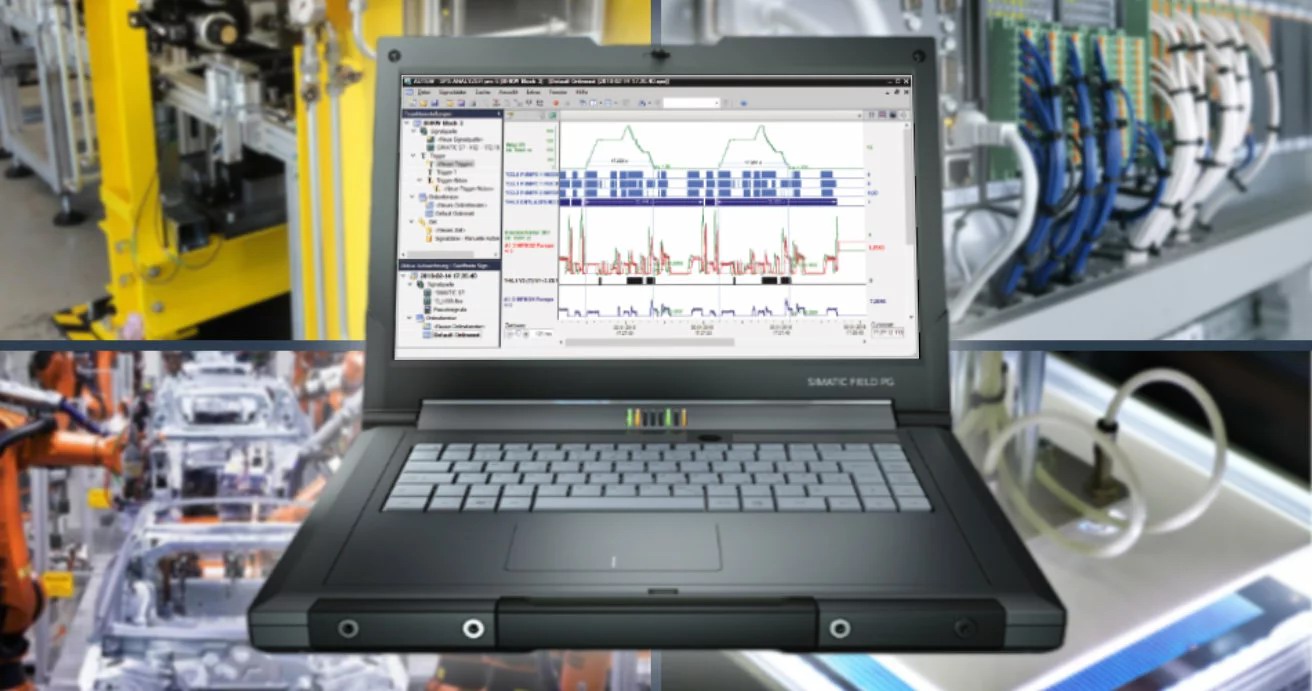

　　连接到PLC设备的编程设备或笔记本电脑可以直接用于数据采集而无需做修改。通过高性能PLC 驱动（内部开发），PLC-ANALYZER pro 6实现了基于OPC-UA的解决方案无法实现的采样率。

　　PLC-ANALYZER pro 6可以完整采集每个PLC周期中的测量值提供精确的周期记录，可以同时记录来自250个信号源的最多1600万个变量。



PLC-ANALYZER pro 6

One tool – everything under control



ANA6000E      PLC-ANALYZER pro 6 - base module

                        Software logic-analyzer for fault diagnosis, optimization, analysis and long-term recording for different PLC-systems.

                        16 million variables simultaneously. Video recording time-synchronous to process data (optional). Windows 7/8/10/11

                        (32/64-Bit). USB-LicenseKey Dongle, Manual, multi language (English/Ger-man), Software support and updates within

                        the current version.

ANA6000ZE    Additional license for an additional workplace (same as ANA6000E)



ANA6240E      PLC-driver Siemens SIMATIC S7 / TIA - Ethernet TCP/IP / PROFINET

ANA6240ZE    Additional license for an additional workplace (same as ANA6240E)

ANA6230E      PLC-driver Siemens SIMATIC S7 / TIA - MPI/PPI + PROFIBUS

ANA6230ZE    Additional license for an additional workplace (same as ANA6230E)

ANA6340E      PLC-driver Siemens SIMATIC S5 / SINUMERIK - PG-Interface, cycle precise2 / Ethernet TCP/IP

ANA6340ZE    Additional license for an additional workplace (same as ANA6340E)

ANA6310E      PLC-driver Siemens LOGO! - PG-Interface / Ethernet TCP/IP

ANA6310ZE    Additional license for an additional workplace (same as ANA6310E)

ANA6260E      PLC-driver Siemens SIMOTION C/P/D - MPI/PROFIBUS/Ethernet TCP/IP / PROFINET, servo-cycle precise

ANA6260ZE    Additional license for an additional workplace (same as ANA6260E)

ANA6270E      PLC-driver CoDeSys - all common protocols (e.g. Ethernet TCP/IP, CAN)

ANA6270ZE    Additional license for an additional workplace (same as ANA6270E)

ANA6500E      PLC-driver BECKHOFF TwinCAT - Ethernet TCP/IP

ANA6500ZE    Additional license for an additional workplace (same as ANA6500E)

ANA6280E      OPC UA Driver - Ethernet TCP/IP

ANA6280ZE    Additional license for an additional workplace (same as ANA6280E)

ANA6140E      PLC-driver B&R - serial / Ethernet TCP/IP

ANA6140ZE    Additional license for an additional workplace (same as ANA6140E)

ANA6750E      PLC-driver PILZ PSS / PNOZ - programming interface

ANA6750ZE    Additional license for an additional workplace (same as ANA6750E)

ANA6780E      PLC-driver PILZ PSS / PNOZ - Ethernet TCP/IP

ANA6780ZE    Additional license for an additional workplace (same as ANA6780E)

ANA6610E      PLC-driver Allen-Bradley ControlLogix / PLC / SLC - DF1, DH+, DH-485

ANA6610ZE    Additional license for an additional workplace (same as ANA6610E)

ANA6640E      PLC-driver Allen-Bradley Compact/ControlLogix / PLC / SLC - Ethernet TCP/IP

ANA6640ZE    Additional license for an additional workplace (same as ANA6640E)

ANA6180E      PLC-driver PHOENIX - Ethernet TCP/IP, cycle precise2

ANA6180ZE    Additional license for an additional workplace (same as ANA6180E)

ANA6910E      PLC-driver BOSCH CL - programming interface (BUEP19E)

ANA6910ZE    Additional license for an additional workplace (same as ANA6910E)

ANA6130E      PLC-driver GE Fanuc Series 90 / VersaMax / Nano / Micro - programming interface (SNP)

ANA6130ZE    Additional license for an additional workplace (same as ANA6130E)

ANA6135E      PLC-driver GE Fanuc CNC / PMC - Ethernet TCP/IP / HSSB

ANA6135ZE    Additional license for an additional workplace (same as ANA6135E)

ANA6136E      PLC-driver Fanuc R-30i / R-J3i - Ethernet TCP/IP

ANA6136ZE    Additional license for an additional workplace (same as ANA6136E)

ANA6170E      PLC-driver OMRON C / CV / CS1 / NJ / NX / NY / CJ23 - progr. interface (Host Link) / Ethernet TCP/IP

ANA6170ZE    Additional license for an additional workplace (same as ANA6170E)

ANA6711E      PLC-driver MITSUBISHI MELSEC Q / L / A / FX - programming interface

ANA6711ZE    Additional license for an additional workplace (same as ANA6711E)

ANA6740E      PLC-driver MITSUBISHI MELSEC Q / L / A / FX - Ethernet TCP/IP

ANA6740ZE    Additional license for an additional workplace (same as ANA6740E)

ANA6410E      PLC-driver Schneider Modicon TSX Quantum / Momentum / Compact - Modbus I / Modbus+

ANA6410ZE    Additional license for an additional workplace (same as ANA6410E)

ANA6440E      PLC-driver Schneider Modicon TSX Quantum / Momentum / Compact / M - Modbus TCP/IP

ANA6440ZE    Additional license for an additional workplace (same as ANA6640E)

ANA6470E      PLC-driver Schneider Modicon TSX Premium / Atrium / Micro / Nano - TCP/IP / Uni-Telway

ANA6470ZE    Additional license for an additional workplace (same as ANA6470E)

ANA6430E      PLC-driver Schneider AEG TSX A250 / A120 / Micro - programming interface (KS)

ANA6430ZE    Additional license for an additional workplace (same as ANA6430E)

ANA6120E      PLC-driver Selectron - Ethernet TCP/IP

ANA6120ZE    Additional license for an additional workplace (same as ANA6120E)

ANA6790E      PLC-driver Jetter JetControl / Delta / Nano - Serial / Jetway / PC-PPLC / Ethernet TCP/IP

ANA6790ZE    Additional license for an additional workplace (same as ANA6790E)

ANA6730E      PLC-driver HITACHI H / EH-150 / Micro-EH - programming interface / Ethernet TCP/IP

ANA6730ZE    Additional license for an additional workplace (same as ANA6730E)



ANA6600E     Video track module for PLC-ANALYZER pro 6 - Bundle

                       Software connection for IP / GigE Vision / USB cameras for time-synchronous video track in PLC-ANALYZER pro 6.

                       Bundle incl. USB camera: Full HD resolution 1.920 x 1.080 pixels, autofocus and manual focus, USB, pan/tilt/zoom

                       function, universal mounting bracket



ANA6650E    Video track module for PLC-ANALYZER pro 6

                      Software connection for all common types of IP / GigE Vision / USB cameras for time-synchronous video track

                      in PLC-ANALYZER pro 6



ANA6800E   Virtual HMI module for PLC-ANALYZER pro 6

                     Improved analysis of operating sequences through subsequent HMI visualization from recorded process data.

                     Live HMI visualization also possible. Helpful in clarifying plant accidents (e.g. crane), especially when operating

                     personnel are involved. Also for training and optimization purposes in plant operation. Integrated editor with

                     all common control and display elements



ANA6510E   AD_USB-Box® for PLC-ANALYZER pro - Bundle

                     Hardware for recording up to 8 analog and 20 digital external electrical measured values. Ready for installation to

                     any PC with USB port, inclusive Expansion Unit, cable connection and driver for PLC-ANALYZER pro 6



ANA6525E   4 - 20 mA Current Loop Converter ET420 for 4 channels

                    Hardware extension for transforming four 4-20 mA signals to four independent 1-5 VDC outputs. The board provides

                    individually protected 24 VDC power supply for each current loop. Simple, straightforward wiring and mounting

BLACKBOX 4 Edge with PLC-ANALYZER pro 6

ANA9620E   BLACKBOX 4 Edge - Bundle SIMATIC S7 / TIA - Ethernet TCP/IP / PROFINET

                     Ultra compact fanless special IPC for long-term process data recording and remote service, 8 GB RAM, 1 TB SSD,

                     plug for 24 VDC power supply, ext. power supply 100 - 240 VAC, remote PWR plug, plug for POWER-INDICATOR

                     + LIFE-INDICATOR + ACTION-CONTACT, Adapter DP-Display Port to HDMI, DIN rail mounting adapter, Windows 10

                    pro (64-Bit) (multi-language), including BLACK-BOX-License PLC-ANALYZER pro 6 with PLC-driver Siemens SIMATIC S7

                    - Ethernet TCP/IP / PROFINET software installed and ready for operation, user manual, 12 month warranty



ANA9625E   BLACKBOX 4 Edge - Bundle SIMATIC S7 / TIA - MPI/PROFIBUS .

                     same as ANA9620E, but with alternative PLC coupling Highspeed USB - S7 MPI / PROFIBUS Adap-ter and alternative

                     PLC-driver Siemens SIMATIC S7 - MPI/PPI/PROFIBUS

                     BLACKBOX configurations with other or several PLC drivers on request



UPS24MFE  Special-UPS 24 V DC (maintenance free) for BLACKBOX 4 Edge

                      Protects the BLACKBOX against failure of the 24 V DC power supply. If the power supply fails for a longer period of time,

                      the BLACKBOX is automatically shut down in a controlled manner and automati-cally restarted when the power supply returns;

                      mounting on 35 mm DIN rail, input 24 V DC (22 ~ 29 V), output 24 V DC, incl. software and USB cable, configured ready-to-run

                      when ordered with BLACKBOX 3



LTE1000E    4G LTE-Modem for BLACKBOX 4 Edge

                     Mini PCIe module integrated in BLACKBOX. Operating modes: LTE / HSPA+ / HSPA / UMTS / EGDE / GPRS / GSM

                     with GSM-UMTS-LTE folding antenna, SMA connector; incl. assembling, software installation and configuration. Frequency

                     bands Europe / Australia (other regions on request)



WIF1010E   WLAN-AC USB Nano Adapter for BLACKBOX 4 Edge

                    IEEE 802.11 ac/n/g/a, 2,4 GHz and 5 GHz, WPA/WPA2, Wi-Fi Protected Setup (WPS) Push- Button for fast connection to

                    WLAN network



Accessoeies for PLC-ANALYZER pro 6 / BLACKBOX 4 Edge



ANA1650E  S7 LAN (Ethernet gateway for MPI/PPI and PROFIBUS)

                    S7 Ethernet-connection without expensive communication-processor. MPI/PPI/PROFIBUS-connection to S7-200, S7-300,

                    S7-400 - 10/100 Base TX RJ45- ethernet plug, S7-sided 9,6 kBaud .. 12 MBaud, electrical isolation, power supply from

                    the S7-PLC or ext. 24 V connection, PG female connector looped through, incl. driver software



ANA1530E  USB-Connection PC - SIMATIC S5

                    Programming cable for connecting a SIMATIC S5 via USB interface. USB male Type A for PC, incl. driver software, cable

                    length 3m, special length available on request



ANA1540E  S5 LAN (Ethernet gateway for S5 programming interface)

                    S5 Ethernet-connection without expensive communication-processor. Connect one to programming-interface S5 and the other

                    end (RJ45-plug) to 10/100 MBit Ethernet TCP/IP, virtual COM-port on PC-site by supplied driver software PLC-(Multi)VCOM
